Everwin Air Coil Guns | SHOP BY CATEGORY 15 Pallet Clinch Air Nailer Coiler Pn70Clb

Product Description

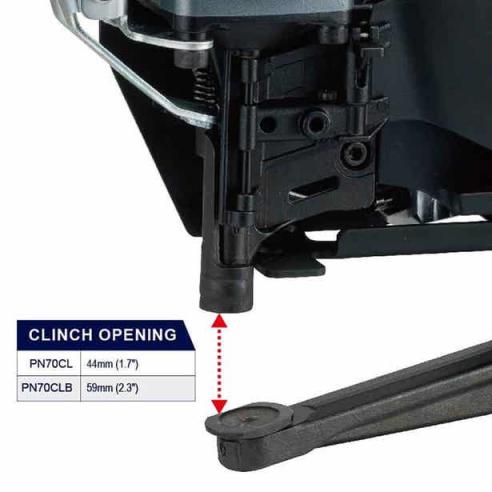

The PN70CL Industrial Clinch Nail Gun is a patented pneumatic tool that revolutionizes the way string pallets are repaired. This tool helps improve operation safety while boosting efficiency compared to conventional string pallet repair methods. The PN70CL nailer is geared with a built-in anvil that nails are driven against, which results in nails clinched as intended in pallet repair. EVERWIN’s patented ClinchArm air route ensures the anvil clamps pallet strings firmly before each nail is driven, resulting in an optimal clinch-yield rate. Once the trigger is pulled, the following sequence of motions happen: 1) the PN70CL’s clinch arm is brought upwards by a rear cylinder. 2) the first sequence clamps pallet strings against each other. 3) a nail is driven and clinched against the anvil attached to the clinch arm. Optimal Clinch Performance Industry-Leading Clinch-Yield Rate Exlusive Patented Design Patented Clinch Sequence Design Maneuverable Lightest & Toughest Tool In Class Replaceable Anvil Equipped With Backup Anvil Tool Hanger Set Inclusive Hang Tools On Spring Balancers For Gravity-Free Operation Dust Cover Blocks Nails Or Wire Chips Specifications Weight: 7.9 kgs (17.4 lbs) Height: 403mm (15.9″) Width: 155mm (6.1″) Length: 376mm (14.8″) Operating Pressure: 5~8 bar (70~120 PSI) Driving Power (in-lbs @100psi): 712 Air Consumption (L/sec @90psi): 1.7 (3.6 CFM) Type: 15 Wire Collated Nails Loading Capacity: 225~300 Shank Type: Smooth, Screw or Ring Nail Length: 45mm (1-3/4″) Nail Head Dia: 5.0~6.9mm (0.197″~0.270″) Nail Shank Dia: 2.1~2.8mm (0.083″~0.110″)
